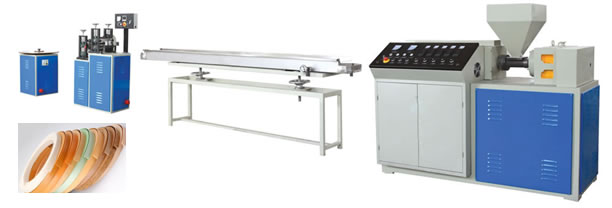

PVC sealing strip production line
Function and application:
Mainly adopted in the fields of panel furniture, office furniture,cabinet,etc.
Prossessing the characteristics of real texure,UV protection,environment-friendly,etc.
Process flow:
Granulation: compounding ˇúcoloring ˇúmixing ˇúextrusion granulating ˇúpacking
Extrusion: heating and compression ˇúextrusion molding ˇúwinding ˇúpacking
Printing: picking ˇúunwinding ˇúprimer painting ˇúprinting ˇúglazing ˇúwinding ˇúpacking
Technical parameters
Model |
CHSJ45/25 |
CHSJ50/25 |
CHSJ55/25 |
CHSJ65/25 |
Screw diameter(mm) |
¦µ45 |
¦µ50 |
¦µ55 |
¦µ65 |
Screw length proportion(L/D) |
25:1 |
25:1 |
25:1 |
25:1 |
Screw speed(r/min) |
20-60 |
20-60 |
20-60 |
20-60 |
Main motor power(kw) |
7.5 |
11 |
15 |
18.5 |
Output(kg/h) |
10-30 |
10-35 |
20-40 |
30-50 |
