Agricultural V-belts

☆ Features: Agricultural V-belts feature simple structure, easy production, smooth transmission, small mechanical vibration, wide applicability and convenient maintenance.

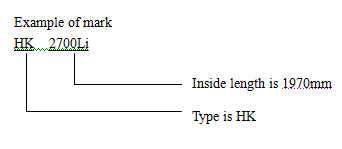

☆ Marking: The marking of agricultural V-belts show the inside length . The length conversion table is available for conversion between different models.

Specification and technical data of Agricultural V-belts:

Production Type

Top Width

Pitch Width

Height

Length Conversion

Length Rang(inch)

Length Range (mm)

Mark

HI

25.4

23.6

12.7

Li=La-80

39 ″ -79 ″

1000-2000

Li

HJ

31.8

29.6

15.1

Li=La-95

55 ″ -118 ″

1400-3000

Li

HK

38.1

35.5

17.5

Li=La-110

63 ″ -118 ″

1600-3000

Li

HL

44.5

41.4

19.8

Li=La-124

79 ″ -157 ″

2000-4000

Li

HM

50.8

47.3

22.2

Li=La-139

79 ″ -197 ″

2000-5000

Li
